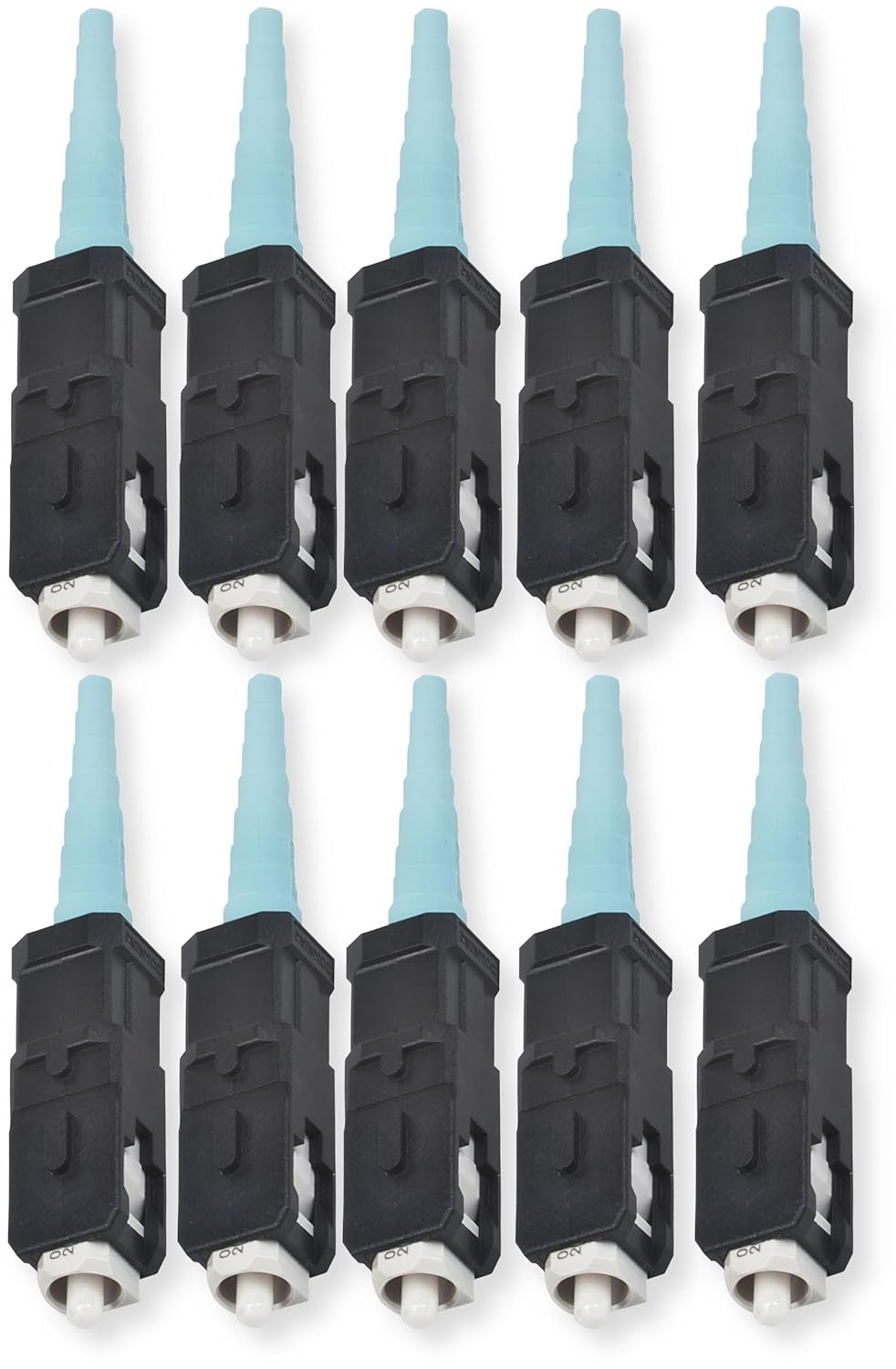

Corning 95-050-41-X Pack of 25 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black Housing

Corning 95-050-41-X Pack of 25 UniCam SC Connectors, 50 Micron Multimode, OM3/OM4 Compatible, Field-installable, No-Epoxy No-Polish, High Performance Fiber Optic Connector, Aqua Boot, Black HousingThe Corning 95-050-41-X UniCam SC Connector is a high-performance, field-installable fiber optic connector designed for 50 µm multimode fibers compatible with OM3 and OM4 standards. This connector is perfect for fiber-to-the-workstation and high-speed data applications requiring consistent, high-quality optical connections.Key Features:Pack of 25 field-installable SC connectorsCompatible with 50 µm multimode OM3/OM4 fiberNo epoxy, no polish installation processTypical insertion loss of 0.1 dBMaximum insertion loss of 0.5 dBCeramic ferrule for precise alignmentComposite black housing with aqua bootOperating temperature range -40C to 75CIncludes shroud, crimp band, 900 µm and 3.0 mm bootsPulling force rating of 125 lbsTensile strength of 4.9 N on 900 µm cableSpecifications:Fiber Category: 50 µm MM (OM3/OM4)Technology: No-Epoxy/No-PolishTemperature Range, Operation: -40C to 75C (-40F to 167F)Connector Type: SCHousing Color: BlackBoot Color: AquaFerrule Material: CeramicNominal Fiber Outer Diameter: 125 µmTensile Strength Jacketed Cable: 50 N (11.24 lbf)Tensile Strength 900 µm Cable: 4.9 N (1.1 lb) change Less than or equal to 0.2 dB, FOTP-6Insertion Loss, Max.: 0.5 dBReflectance: Less than or equal to -26 dBPackage Contents: Connector, shroud, crimp band, boot (900 µm), boot (3.0 mm) per pack

• High-Performance Ceramic Ferrule: Ensures precise alignment and superior optical performance for 50 µm multimode fiber (OM3/OM4)
• Fast Field Installation: No epoxy or polishing required, enabling quick termination in about 50 seconds with the UniCam installation tool
• Low Insertion Loss: Typical insertion loss of 0.1 dB and maximum of 0.5 dB, minimizing signal degradation
• Excellent Reflectance: Reflectance less than or equal to -26 dB for reliable signal integrity in high-speed networks
• Durable Composite Housing: Black housing with aqua boot provides robust protection and easy fiber identification
• Broad Operating Temperature: Functional from -40C to 75C (-40F to 167F), suitable for diverse environments
• Consistent Optical Performance: Factory-polished end face guarantees uniform quality and performance
• Comprehensive Kit Included: Connector, shroud, crimp band, 900 µm boot, and 3.0 mm boot for versatile cable compatibility
• Industry Standards Compliant: Meets EIA/TIA 568-B.3, TIA/EIA 604-10A, IEC61754-20, and RoHS directives for safety and quality
